FOM PANDA 400

FOM PANDA 400 UpStroke Saw

Single head sawing machine with 400mm dia Blade

Fully Specked for Cutting Aluminium or Plastics

 PANDA 400

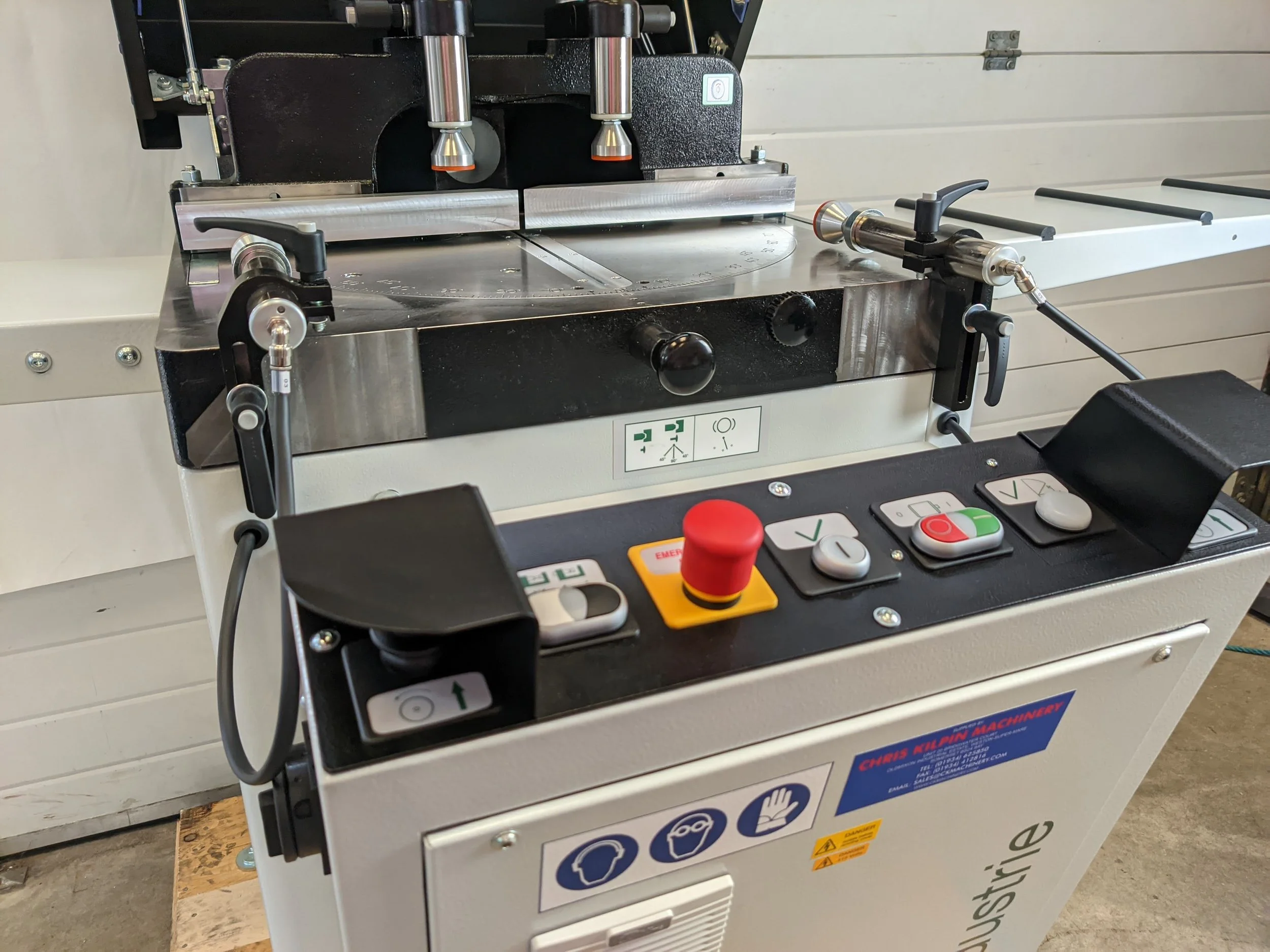

Single head sawing machine with 400 mm up-feed blade and manual positioning of vertical axis

Technical characteristics:

  • Tungsten carbide Æ 400 mm saw blade

  • Oleopneumatic saw blade advance (adjustable blade exit speed – quick return)

  • Rotation from 0°Lh to 0°Rh on vertical axis

  • Integral guard kit around cutting area

  • 2 vertical vices and 2 horizontal vices

  • Cutting lubrication by atomiser

  • Set up for the installation of chips and fumes collectors

  • Motor – tungsten carbide saw blade transmission by belt

  • Machine and turntable structure in stabilised cast iron

  • Turntable rotation on bearings and rollers that guarantees maximum long term precision

  • Working pressure: 7 bar

  • Total dimensions 800 x 1000 x 1370h mm, weight Kg. 240

  • Saw blade motor, three phase 2.5 HP (1.84 Kw) – 2800 rpm. eurovoltage 230/400V– 50Hz; 275/480V – 60 Hz

OPTIONALS:

  • Set of clamping supports (profile type to be specified)

  • Micro-drop pure oil blade lubrication system

  • Discharge roller table with length stop (carton packing included)

3 Mt. Cutting length
4.2 Mt. Cutting length
6 Mt Cutting length

  • ASSOMAK Discharge roller table with length stop: manual, displayed, controlled

  • ASSOMAK 400 Discharge roller table with length stop: manual, displayed, controlled

  • Loading roller table with vertical rollers (carton packing included)

3 Mt. Cutting length
4.2  Mt. Cutting length
