MACHINE ACCESSORIES

BEAD STICK MEASURING DEVICE

** UPDATED BEAD STICK VERSION **

1.5 metre 4-point bead stop that measures each side of the window frame your currently beading to give an exact fit to that frame. Paddles on stop can be adjusted to fine tune settings i.e. to oversize bead to ensure there are no gaps when fitted.

Can be fitted to most saws!

Please Call for details 01934 625850 or email: sales@ckmachinery.com

Optional Bead stick Support Stand can also be ordered

Buy Online:

Bead Stick 4 Point Stop

£399.00

Add To Cart

And butt up against the other side of the frame

Repeat for each of the four sides of the frame

Slide bead through saw to the paddle on stop clamp and cut bead, twist stop and repeat process for each paddle

Attach stop to saw via quick release socket

BEAD STICK FITTING INSTRUCTIONS:

Mount Stop so the front of the measuring stop washer (Black washer Behind the brass mounting plug) is 22cm away from the blade

22cm is to offset the length of the paddle slider and stop washer

There is a large degree of fine adjustment after mounting on the stop paddles

Depending on your system It may well be that you have to over or under size the bead for it all to look right once the glass is in

Profile Packers

Profile Packers in Custom Sizes and Thickness

Please call or email with your requirements

01934 625850 / sales@ckmachinery.com

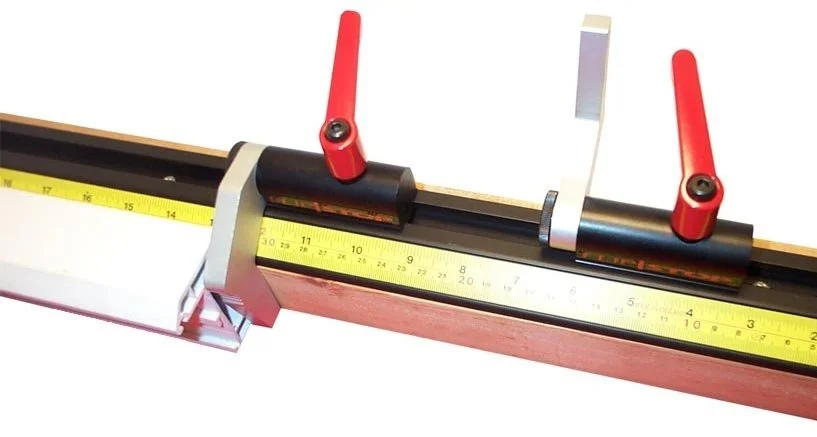

Flip Stop

Flipstop is designed for quick and accurate measuring and to give consistently repeatable results. With its heavy-duty yet simple construction Flipstop can be fitted to a wide variety of saws and drills etc. all that’s needed is a bench with a 45mm high fence, next to the saw/drill for the stop to sit upon.

Standard Flipstop Sets

1m Flipstop set
2m Flipstop set
3m Flipstop set

A set Comprises of one length of track, two stops, two self-adhesive measuring scales (one reading left/right one reading right/left.) fixing screws, Allen key and instructions.

(Individual components for stop are available if required)

Please call 01934 625850 or email with your requirements

Hand Held Digital Thermometer

Use for Testing Heater Plate Temperature on UPVC Welding machines
Complete with 90 Degree Surface Probe
Supplied with Calibration Report

Please Call or email for the latest price 01934 625850

Laser Line Generator Unit

Mains Powered Laser Line Kit Bolt on upgrade all for all kinds of machines and alignment applications

Kit Complete with:

Class 2M Laser Line Generator
UK 3pin Mains Transformer
Laser Mounting Bracket
Mounting Screws and Cable Ties
Laser complies with EU laser safety regulations EN 60825-1,IEC 825-1, 21 CFR 1040
