Great Value Entry Level Copy Router Suitable for any of Size Company

Fully Guarded, 2 Hand Operation, Low Pressure Clamping, and a Pneumatically operated copy pin make this an extremely well equipped Copy Router

 Spindle speed 12.000 rpm

• Total dimension mm 800 x 730 x 1600h; Kg 85

• Air consumption per work cycle 2,8 Nl

• Three phase motor 0.73Kw (1 HP) – 2,800 rpm 230/400V

• Working pressure: 7 bar

• Quick spindle stop for tool changing

• Milling tool shank clamping size: from 5 to 8 mm (with collet change)

• Working lubrication by atomiser (Mist Spray)

• Possibility of machining with copying jigs or mechanical stops

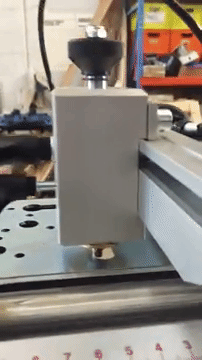

• Pneumatically Lifted Copy Pin

• Double working pressure servo-controlled in low pressure for Safety

• 2x Horizontal Pneumatic Clamps with safety valves

• Blow Gun

OPTIONALS:

• Additional Copy Pin

• Vice jaw extension 805 mm (right or left side)

• Roller table with vice jaw 1800 mm (right or left side)

• Additional receding stop

• Additional magnetic receding stop

• Surcharge for Micro-drop pure oil blade lubrication system

• Router Cutters

• Different Sized Collets
