Simple and very robust notching machine for notching aluminium window and door profiles at right angles for the T-joint connection
Milling depth and milling height can be set precisely using handwheels
Stable cast iron construction
Precise ball bearing guidance of the tool slide on hardened and ground steel shafts
Manual milling feed
Basic machine with 2 manual material clamps

Simple and very robust notching machine for right-angled notching of PVC window and door profiles for the T-joint connection
Milling depth and milling height can be set precisely using handwheels
Stable cast iron construction
Precise ball bearing guidance of the tool carriage on hardened and ground steel shafts
Manual milling feed
The milling cutter shaft has ball bearings on both sides and thus ensures smooth and vibration-free running
Basic machine with 2 pneumatic material clamps

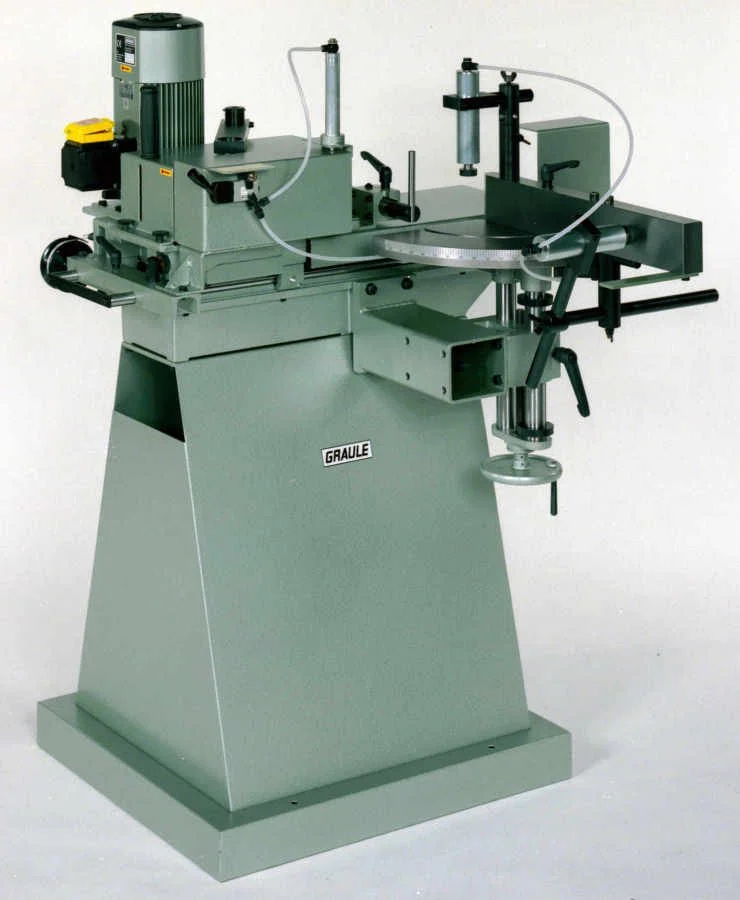

End milling cutters type AKF 6 for right-angled notching and in the miter area up to approx. 20°
The working stroke of the milling unit can be adjusted to the profile width in a matter of seconds, which significantly shortens the work process
High cutting speed due to high number of revolutions (approx. 4000 rpm) and large cutter diameter
Stable cast iron construction
Precise ball bearing guidance of the tool carriage on hardened and ground steel shafts
Manual milling feed
The milling cutter shaft has ball bearings on both sides and thus ensures a smooth and vibration-free milling operation
Options:
- Turret stop for 8 positions
- Hydro-pneumatic feed
- Automatic table height adjustment, pneumatic
